Yuasa NP Series, One Solution To Power It All!
Discover how Yuasa NP Series provides dependable power, engineered to meet your demands with proven and advanced battery technology.

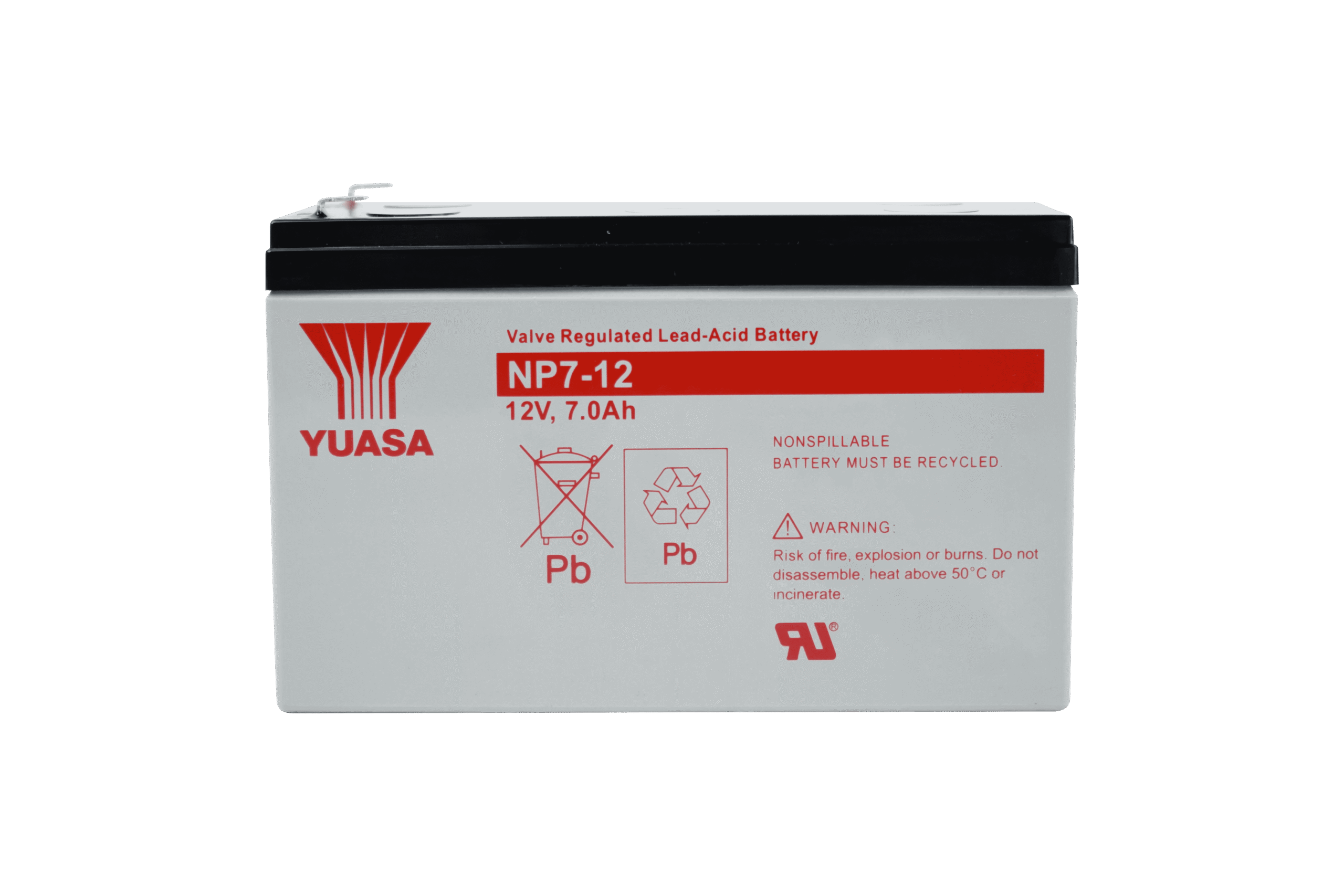

YUASA NP Series
- ✓Maintenance-Free
- ✓Equipped with Pressure Regulating Valve
- ✓Gas Recombination System
- ✓Strong Plate Frame Structure
- ✓Operating Temperature up to 40°C
- ✓Low Self-Discharge
- ✓Fully Sealed Construction
- ✓Low Pressure Ventilation System
- ✓Local Manufactured
YUASA NP SERIES
World’s market leader for over 30 years | Proven track record of long-life performance | The original and most reliable NP VRLA battery | Dependable standby & light cyclic power | Yuasa quality, reliability & performance
| Application | Standby Usage | Cycle Use |
|---|---|---|
| Charging Method | Constant Voltage | |
| Charging Voltage at 25°C (V/cell) | 2.275 | 2.4 |
| Temperature Compensation (mV/°C/cell) | -3 | -4 |
| Maximum Current for First Charging (CA) | 0.25 | 0.25 |
| Temperature | -15 ~ +40°C | |
NP Series Characteristics

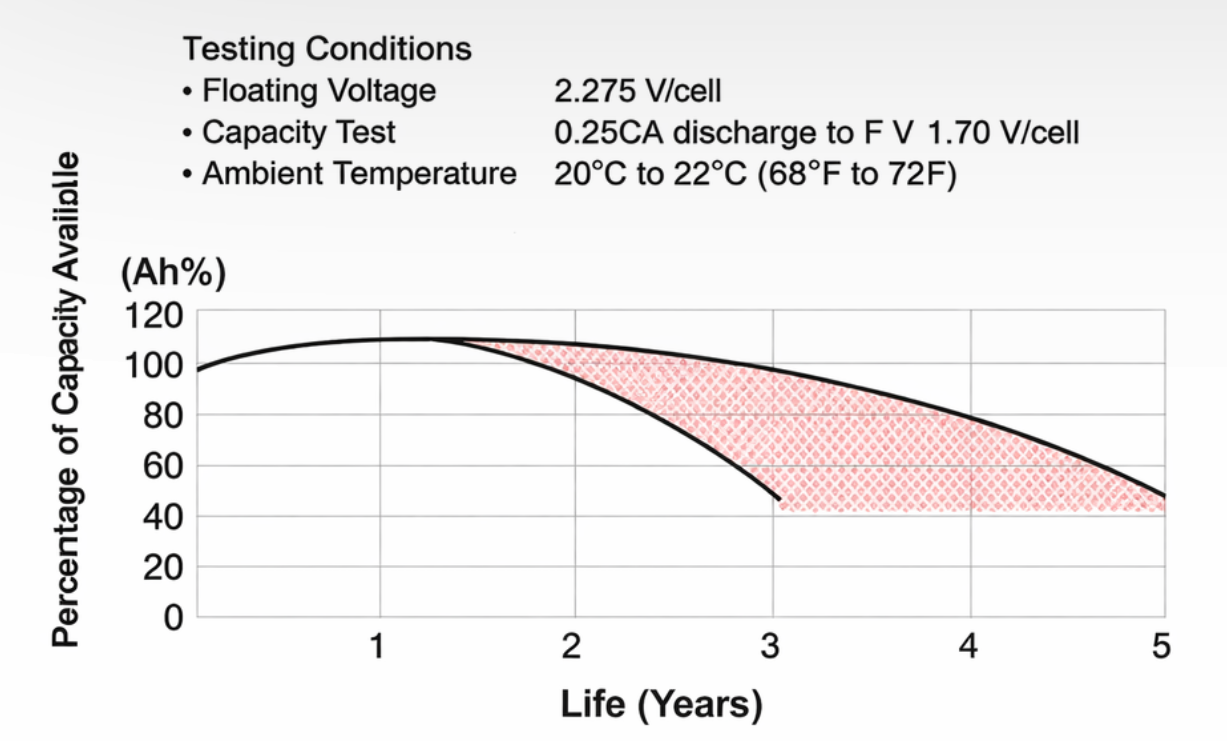

Float Service Life (Example)

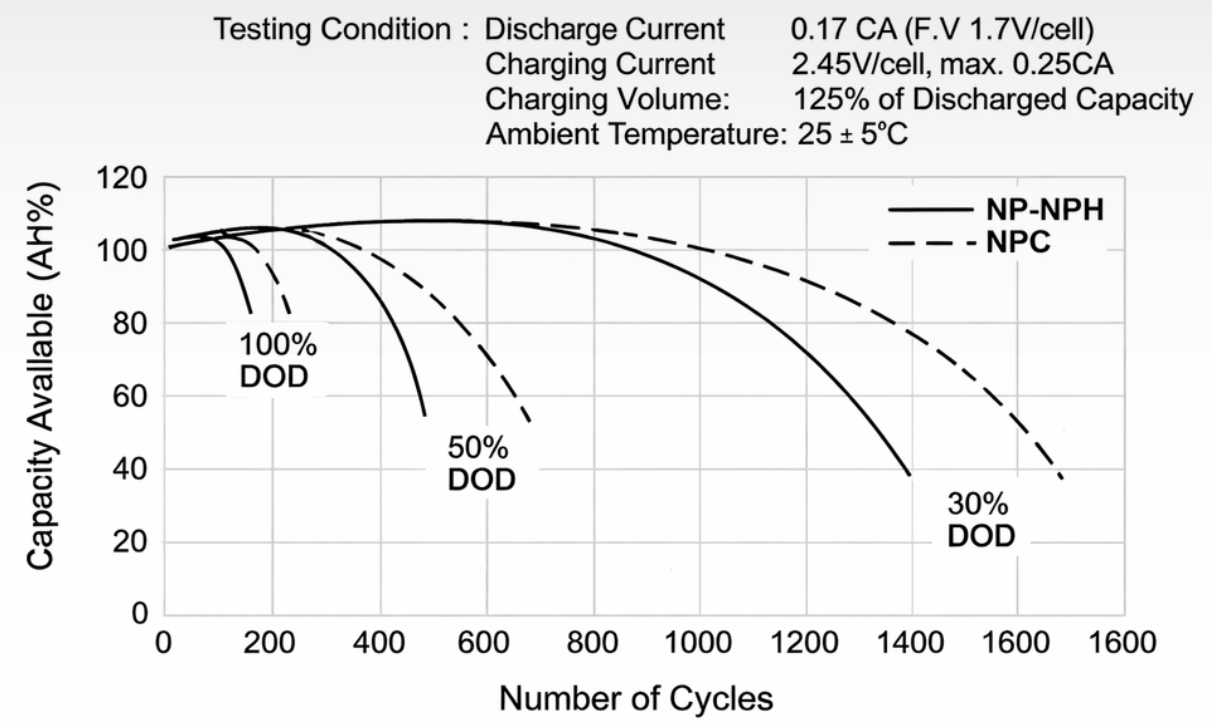

Cycle Service Life in Relation to Depth of Discharge
Discharge Characteristic Curves
Common applications
Uninterruptible Power Supply (UPS)
Ranging in size from desk top units to large plant room installations, UPS’s are a no-break backup power supply for essential equipment. Yuasa batteries can be sized to give the autonomy and load required for any project.
Batteries typically used:NP 4-12 NP 7-12 NP 12-12 NPH 5-12 NP 24-12B NPL 100-12FR
Elevator and Escalator
From low to high rise applications, elevators and escalators deliver reliable vertical mobility tailored to each project’s needs. Yuasa batteries are sized to provide the required autonomy and load for any implementation.
Batteries typically used:NP 7-12 NP 12-12 NP 18-12B
Agricultural Sprayer
In agricultural applications, sprayers support efficient and precise application to enhance seedling health and protection. Yuasa batteries provide optimized capacity and runtime to suit various sprayer applications.
Batteries typically used:NP 7-12 NP 12-12
Portable Speaker
From compact to high powered units, portable speakers deliver reliable, high-quality audio with easy mobility for any setting. Yuasa batteries provide dependable power for portable speaker applications.
Batteries typically used:NP 7-12 NP 12-12
Alarm System
Alarm systems provide reliable early detection and protection. Designed for seamless integration, they ensure fast response and enhanced security. Yuasa batteries deliver dependable backup power for continuous operation.
Batteries typically used:NP 7-12 NP 12-12 NP 2.3-12
Emergency Lighting
From compact units to centralized systems, emergency lighting ensures safe visibility during power outages. Yuasa batteries provide reliable backup power for continuous operation.
Batteries typically used:NP 4-6 NP 7-12
Battery-powered Toys
Designed for comfort and ease of use, Yuasa batteries deliver reliable power, ensuring longer playtime and consistent performance.
Batteries typically used:NP 4-6 NP 7-6 NP 7-12 NP 10-6 NP 12-12
Digital Weighing Scale
From compact to industrial use, digital weighing scales deliver accurate and reliable measurement. Yuasa batteries support stable performance across applications.
Batteries typically used:NP 4-6
YUASA NP SERIES
General Specification
| Product Type | 20-hr Rate Capacity (Ah) |
Dimension | Battery Weight (Kg) |
Battery Layout |
Design Life Time at 25°C (Years) |
||
|---|---|---|---|---|---|---|---|
| Length (mm) | Width (mm) | Height (mm) | |||||
| 6V | |||||||
| NP 1.2-6 | 1.2 | 97 | 25 | 54.5 | 0.30 | 1 | 3 - 5 |
| NP 3-6 | 3 | 134 | 34 | 64 | 0.65 | 1 | 3 - 5 |
| NP 4.5-6 | 4.5 | 70 | 47.5 | 105.5 | 0.80 | 5 | 3 - 5 |
| NP 7-6 | 7 | 151 | 34 | 97.5 | 1.30 | 1 | 3 - 5 |
| NP 10-6 | 10 | 151 | 50 | 97.5 | 1.75 | 1 | 3 - 5 |
| 12V | |||||||
| NP 1.2-12 | 1.2 | 97 | 47.5 | 54.5 | 0.59 | 3 | 3 - 5 |
| NP 2.3-12 | 2.3 | 178 | 34 | 64 | 0.90 | 1 | 3 - 5 |
| NP 4-12 | 4 | 90 | 70 | 105.5 | 1.60 | 1 | 3 - 5 |
| NP 7-12* | 7 | 151 | 65 | 97.5 | 2.30 | 4 | 3 - 5 |
| NP 12-12 | 12 | 151 | 98 | 97.5 | 4.10 | 4 | 3 - 5 |
| NP 18-12B | 17.2 | 181 | 76 | 167 | 6.00 | 2 | 3 - 5 |
| NP 24-12B | 24 | 166 | 175 | 125 | 8.30 | 2 | 3 - 5 |
| NP 38-12 | 38 | 197 | 165 | 170 | 13.20 | 2 | 3 - 5 |
| NP 65-12 | 65 | 349.8 | 166 | 174 | 21.50 | 2 | 3 - 5 |
| NPL 100-12 | 100 | 407 | 172.5 | 240 | 37 | 6 | 5 - 7 |
| REW 45-12 | 9 | 151 | 65 | 97.5 | 2.6 | 4 | 5 - 7 |
| NPH 5-12 | 5 | 90 | 70 | 105.5 | 1.85 | 1 | 3 - 5 |
| FXH 100-12FR | 100 | 508 | 106 | 236 | 34 | 7 | 7 - 10 |
*Produced by PT. Yuasa Battery Indonesia
Battery Layout - Size in mm
